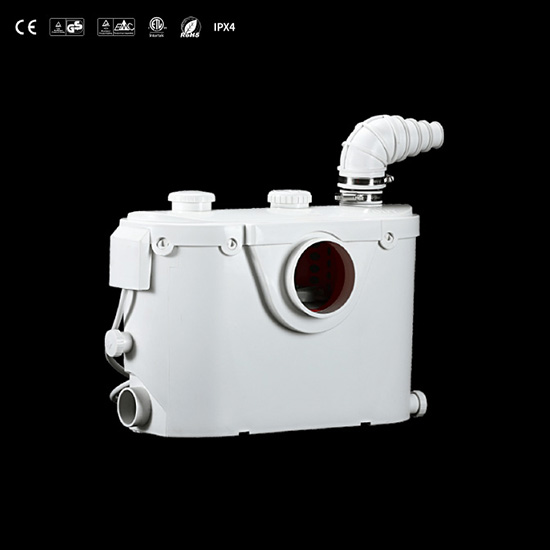

Sewage Lifter Macerator Pump FLO500-B Series

FLO500-B

  • 4 inlets + 1 outlet.

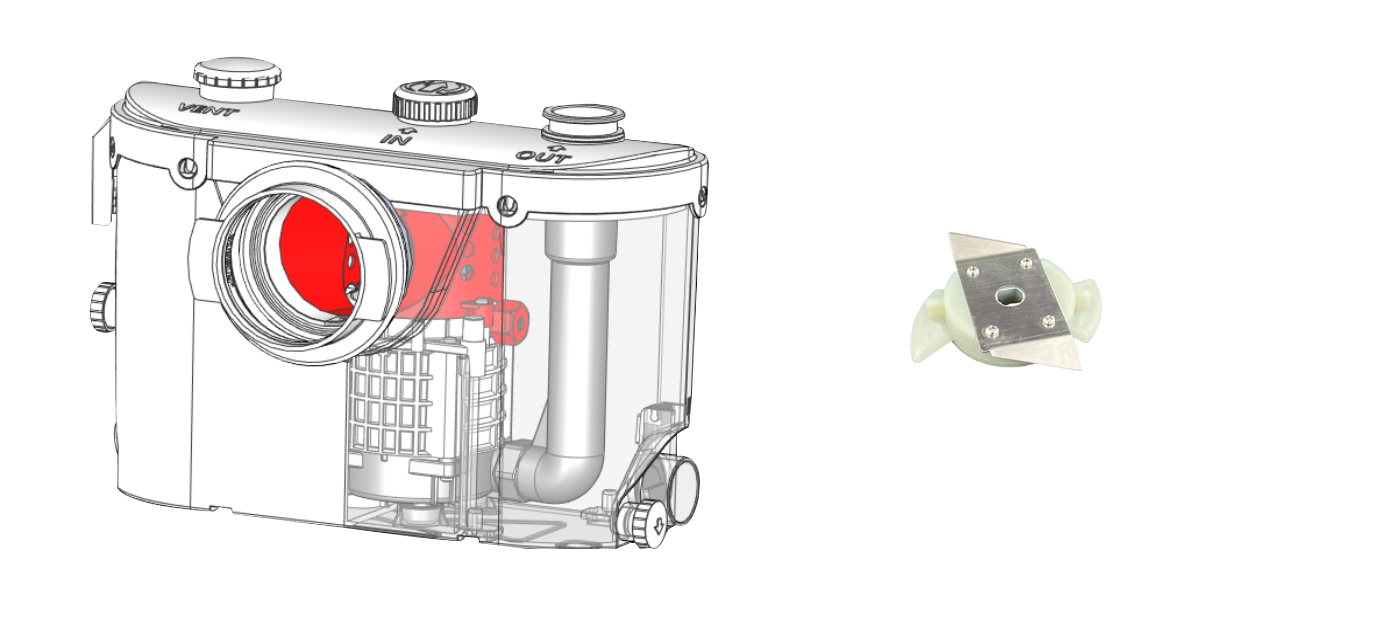

  • With cutting system.
  • Ultra-thin external dimensions.

FLO500-BS

  • 4 inlets + 1 outlet.
  • With cutting system.
  • Ultra-thin external dimensions.
  • Delay function, using PCB can extend the working time of the motor, drain more thoroughly. When the water intake is small, reduce the number of motor starts.
Inlet Pipe Diameter: 100mm/3×40mm 4″/3×1-1/2″
Noise: 35 ~ 50dB

Description

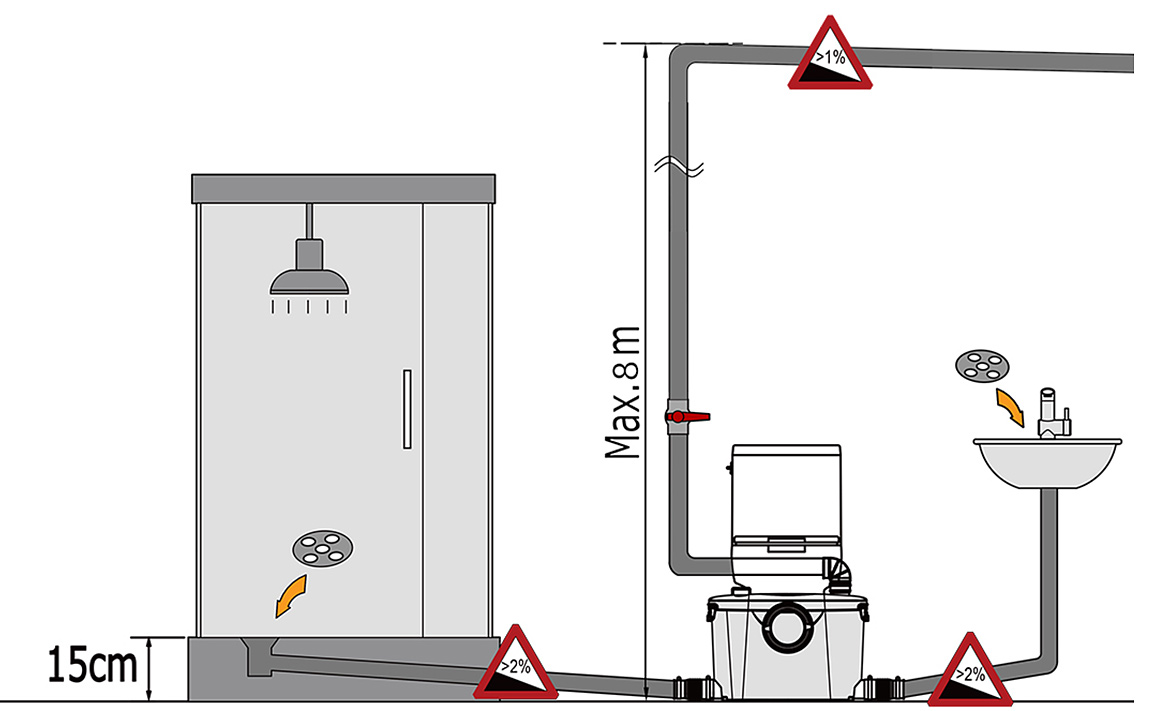

POSSIBLE CONNECTIONS

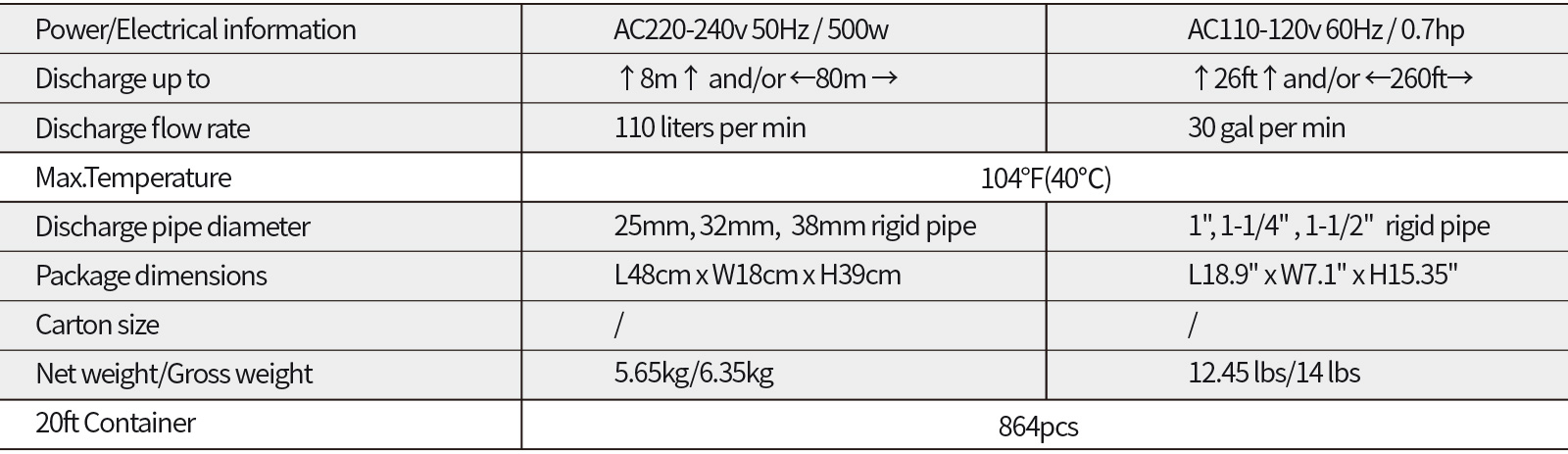

TECHNICAL PARAMETER

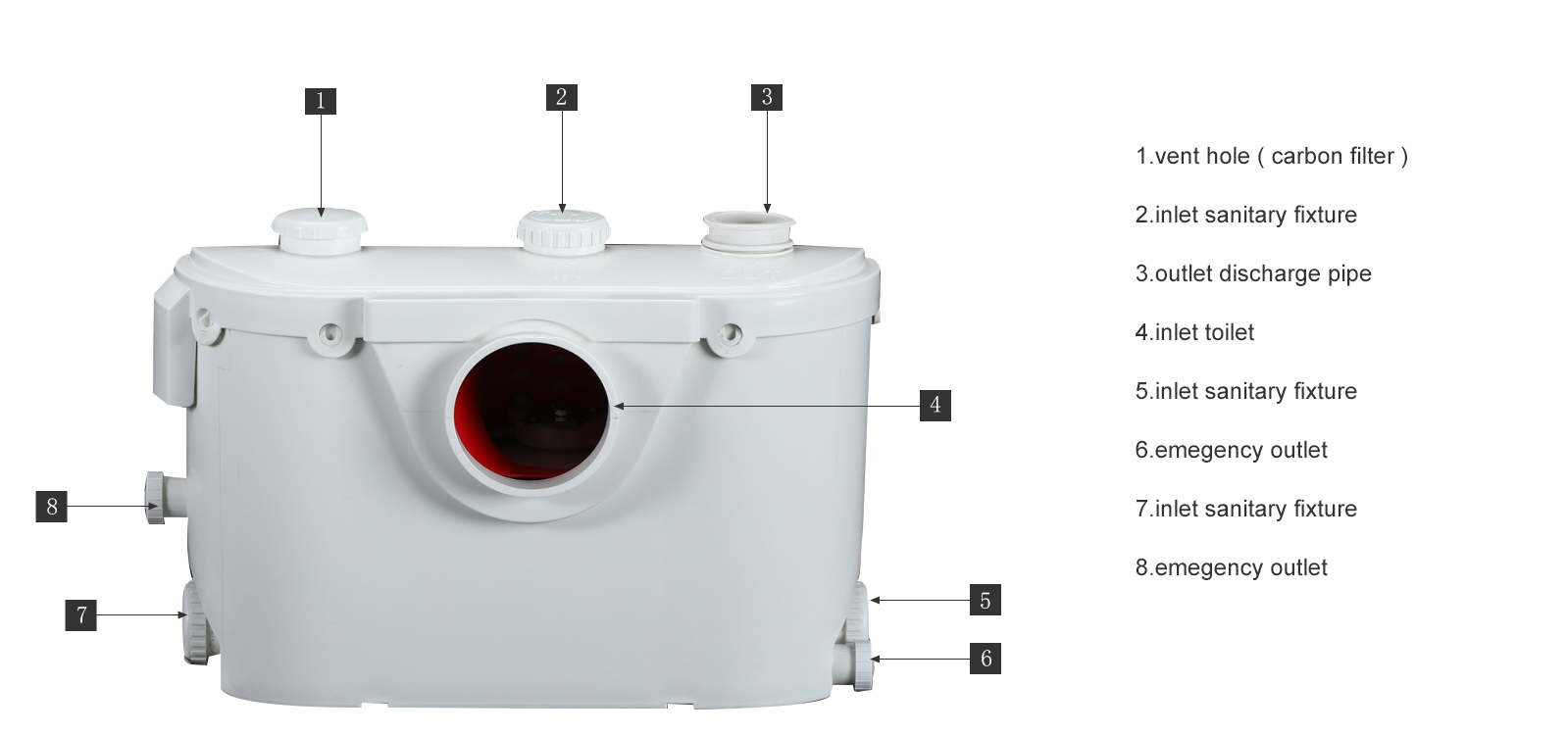

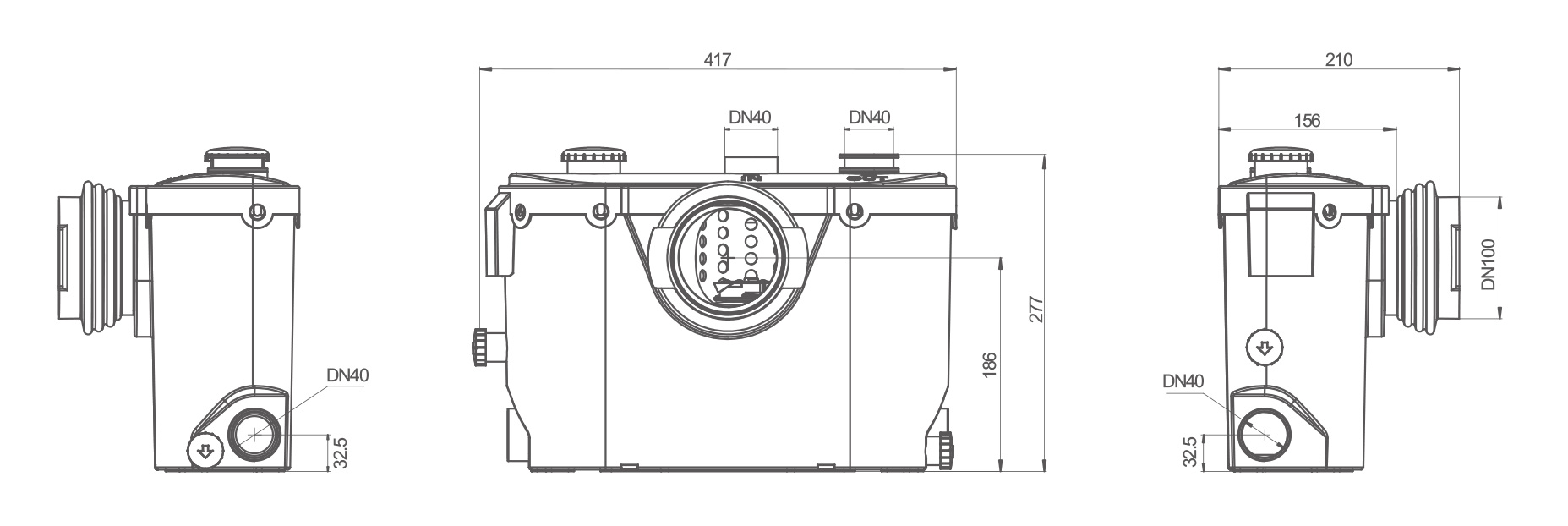

INTERFACE DIAGRAM
