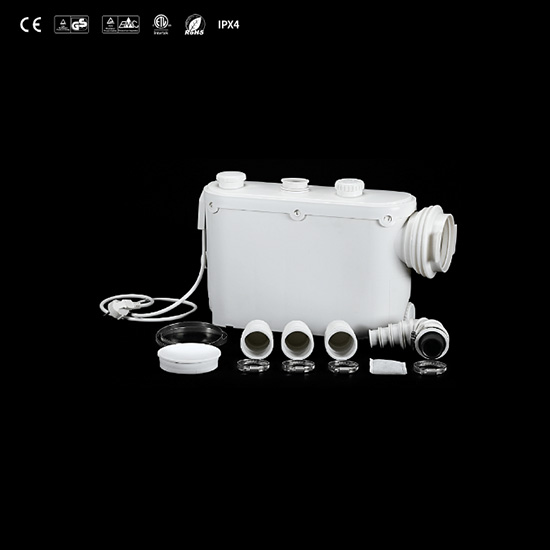

Sewage Lifter Macerator Pump FLO500-C Series

FLO500-C

  • 4 inlets + 1 outlet.

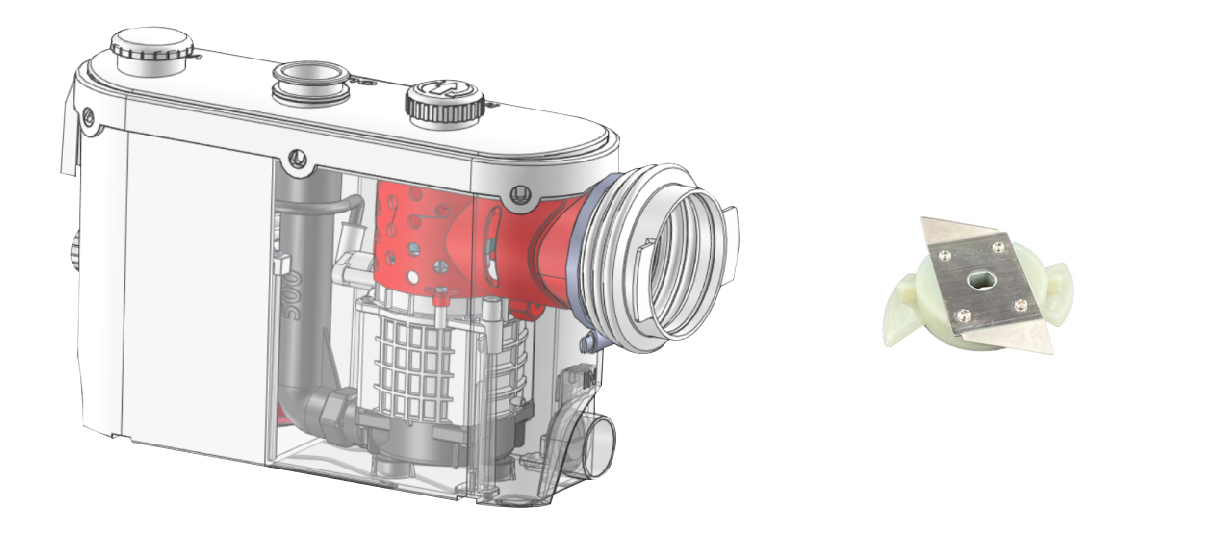

  • With cutting system.

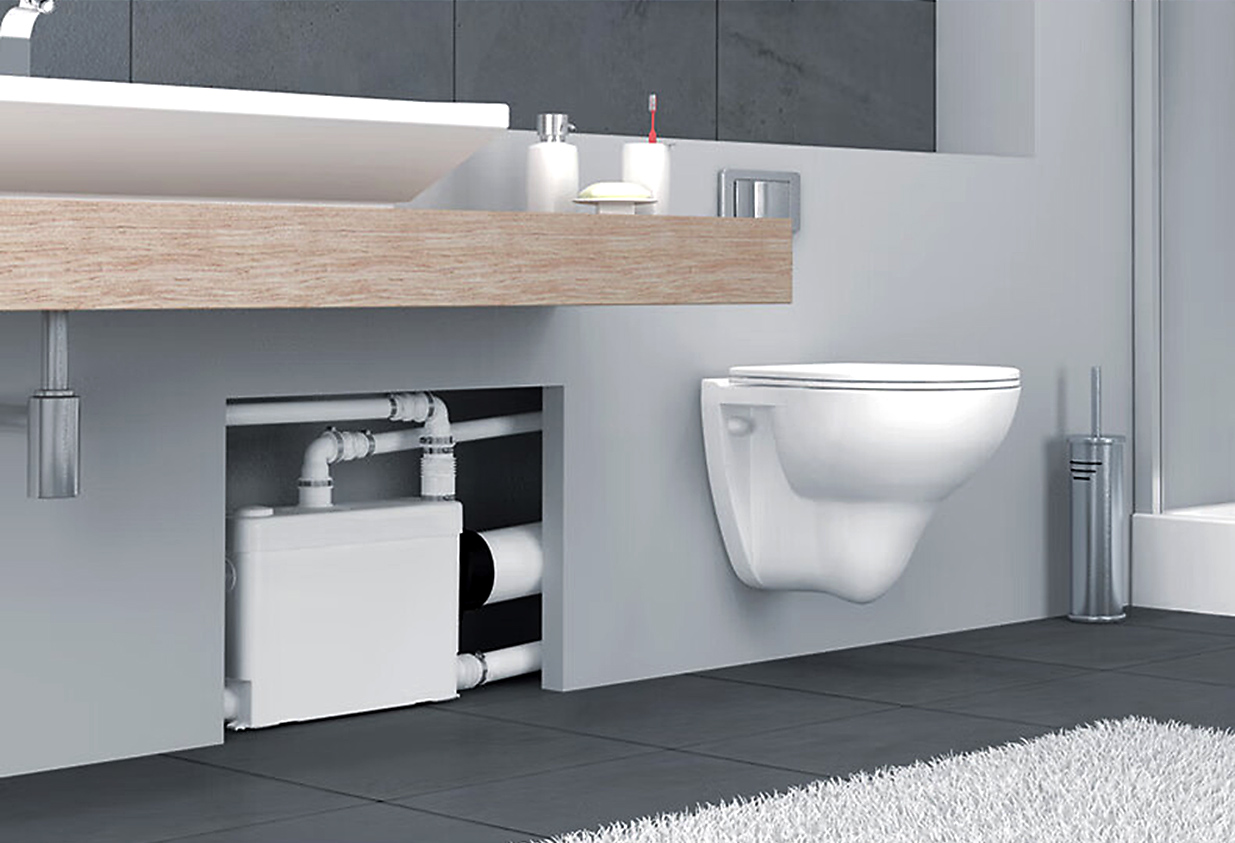

  • Ultra-thin external dimensions, easier to embed in the wall.

FLO500-CS

  • 4 inlets + 1 outlet.
  • With cutting system.
  • Ultra-thin external dimensions, easier to embed in the wall.
  • Delay function, using PCB can extend the working time of the motor, drain more thoroughly. When the water intake is small, reduce the number of motor starts.
Inlet Pipe Diameter: 100mm/3×40mm 4″/3×1-1/2″
Noise: 35 ~ 50dB

Description

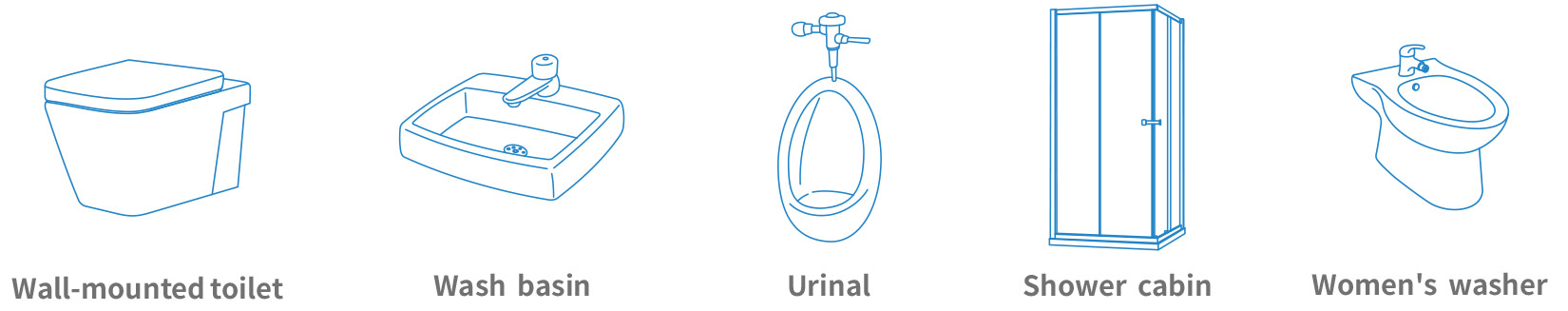

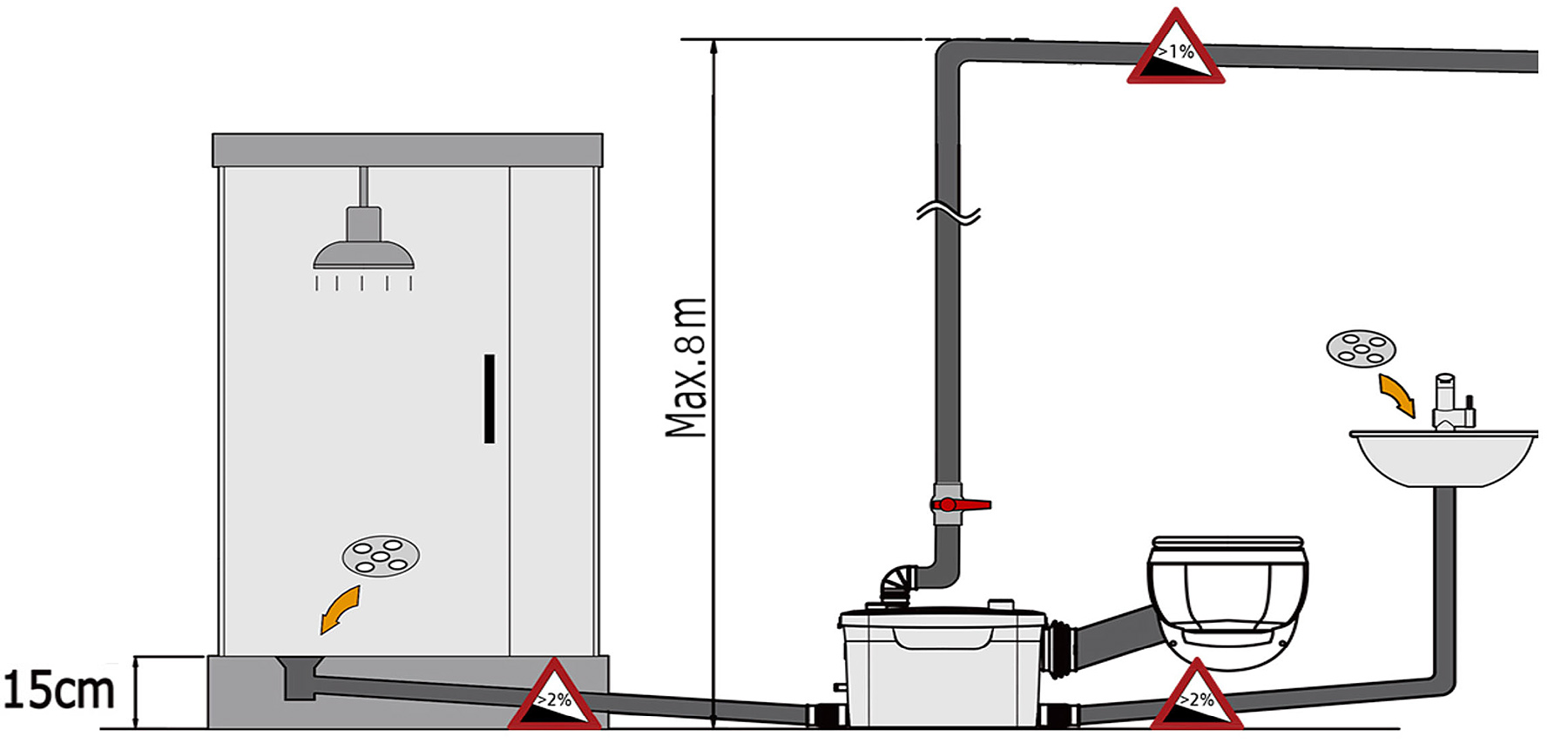

POSSIBLE CONNECTIONS

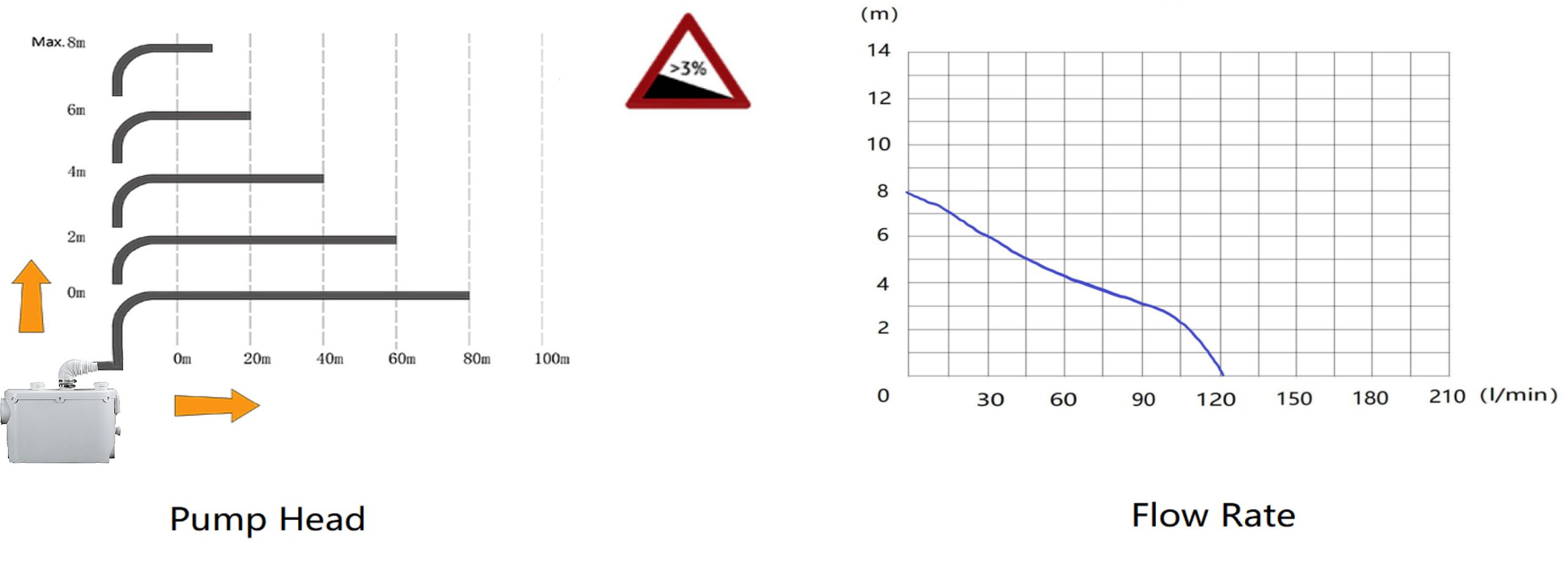

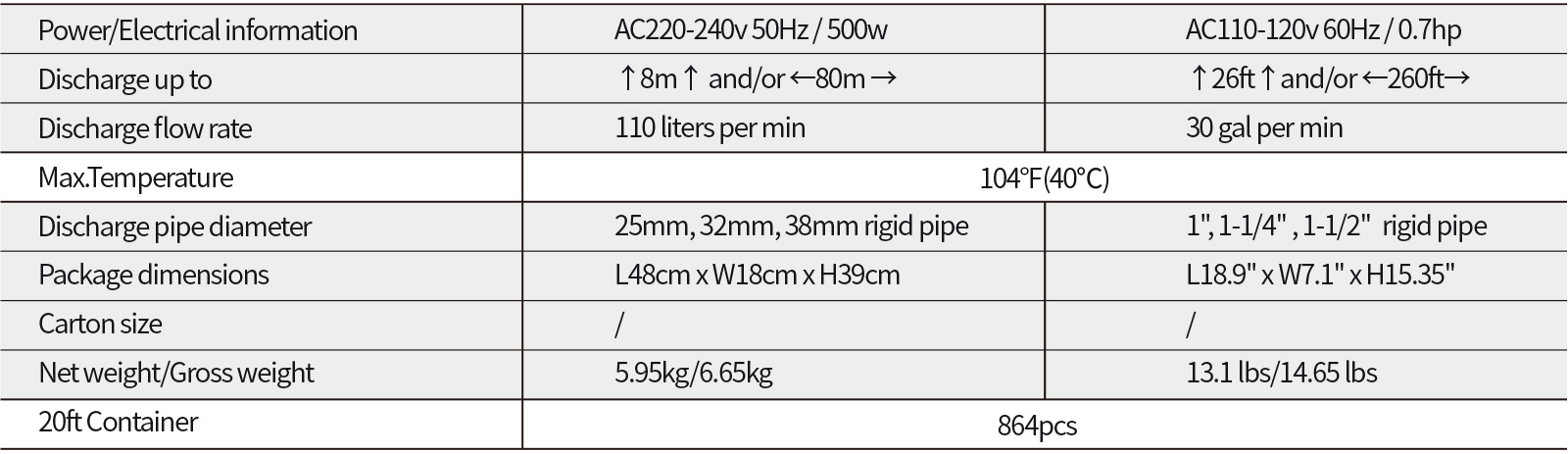

TECHNICAL PARAMETER

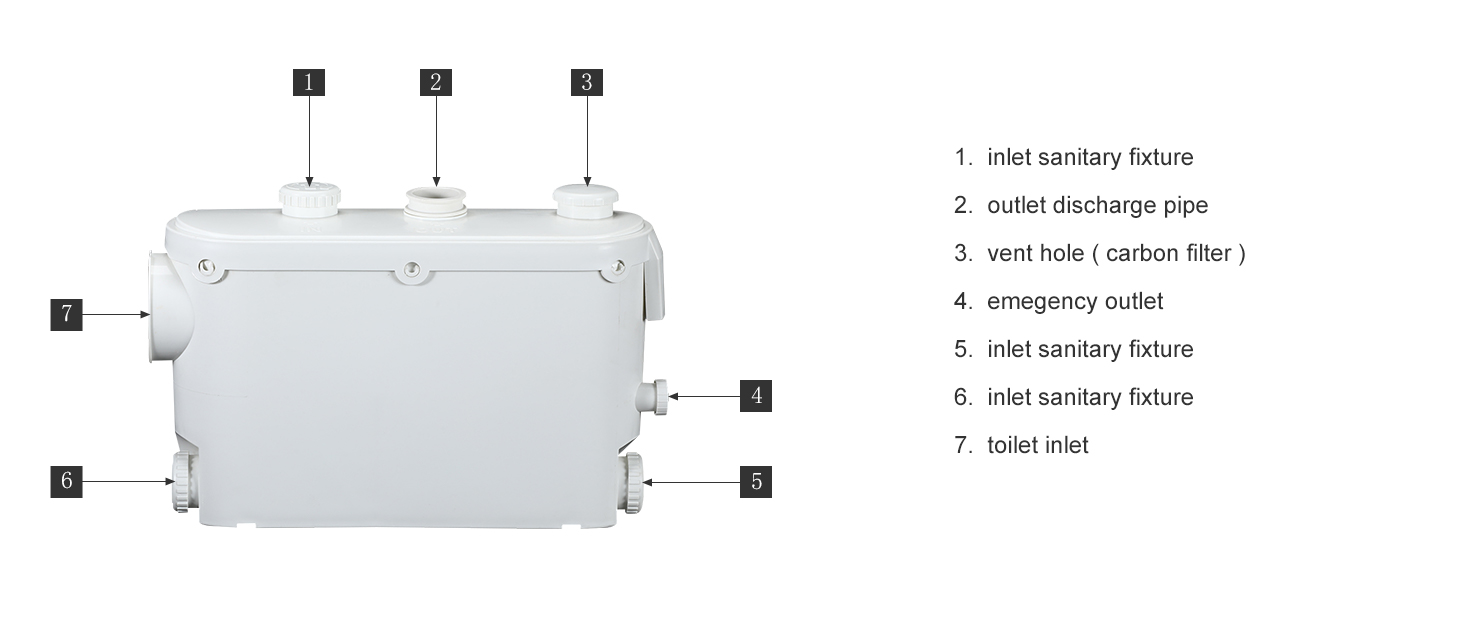

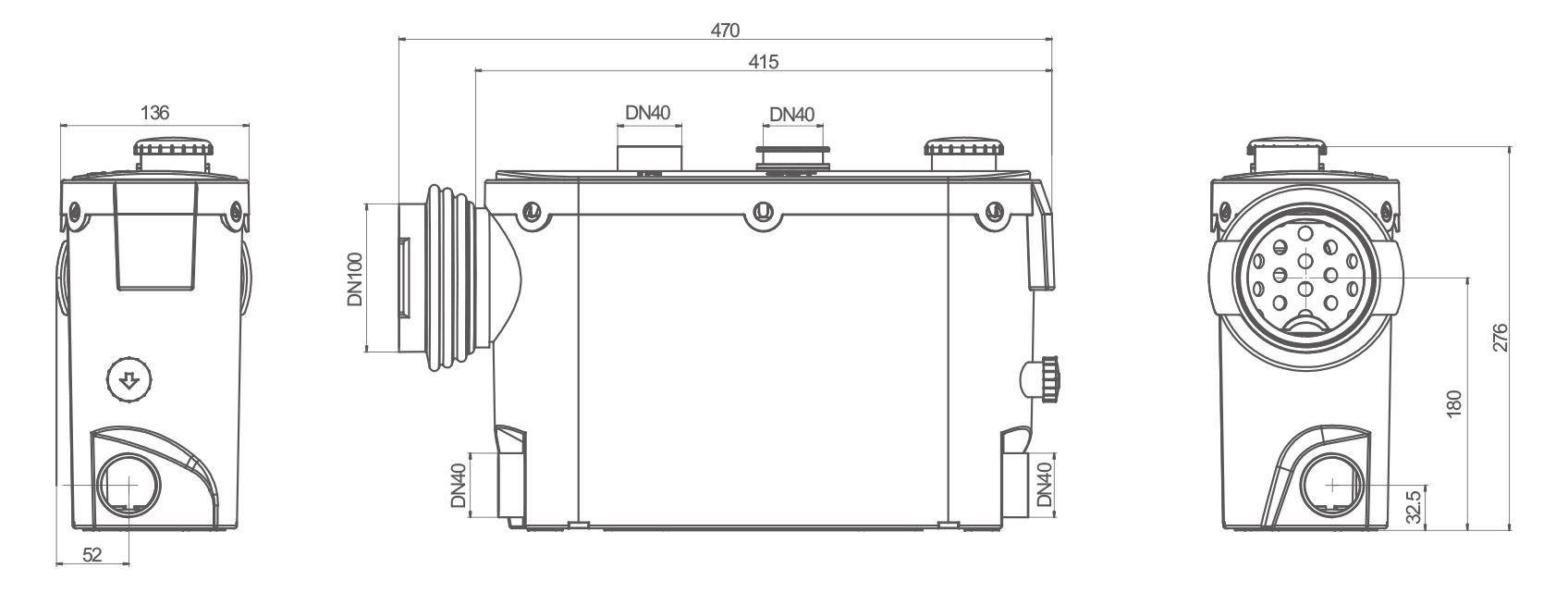

INTERFACE DIAGRAM
