Sewage Lifter Macerator Pump FLO800-AG-M Series

FLO800-AG-M

  • 4 inlets + 2 outlets,choose the outlet according to convenience.

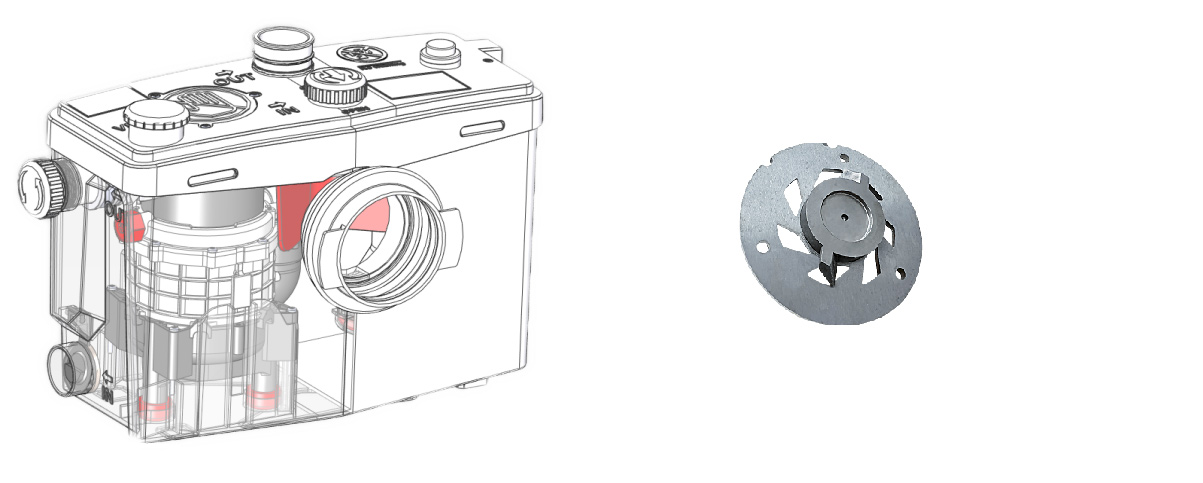

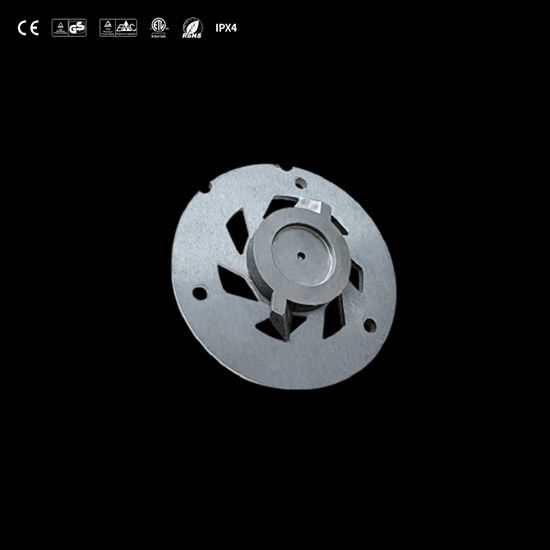

  • Using grinding blade, can cut sanitary napkin, towel, condoms etc.
  • With 1 pc repair panel, can easy to take out the block.
  • With repair panel, can take out the whole switch part.

FLO800-AGS-M

  • 4 inlets + 2 outlets, choose the outlet according to convenience.
  • Using grinding blade, can cut sanitary napkin, towel, condoms etc.
  • With 1 pc repair panel, can easy to take out the block.
  • With repair panel, can take out the whole switch part.
  • Delay function, using PCB can extend the working time of the motor, drain more thoroughly. When the water intake is small, reduce the number of motor starts.



Inlet Pipe Diameter: 100mm/3×40mm 4″/3×1-1/2″
Noise: 35 ~ 50dB

Description

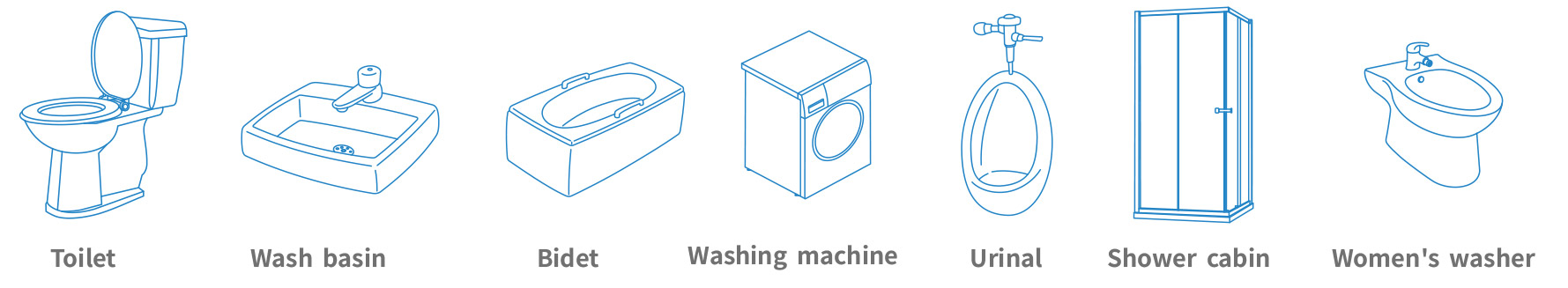

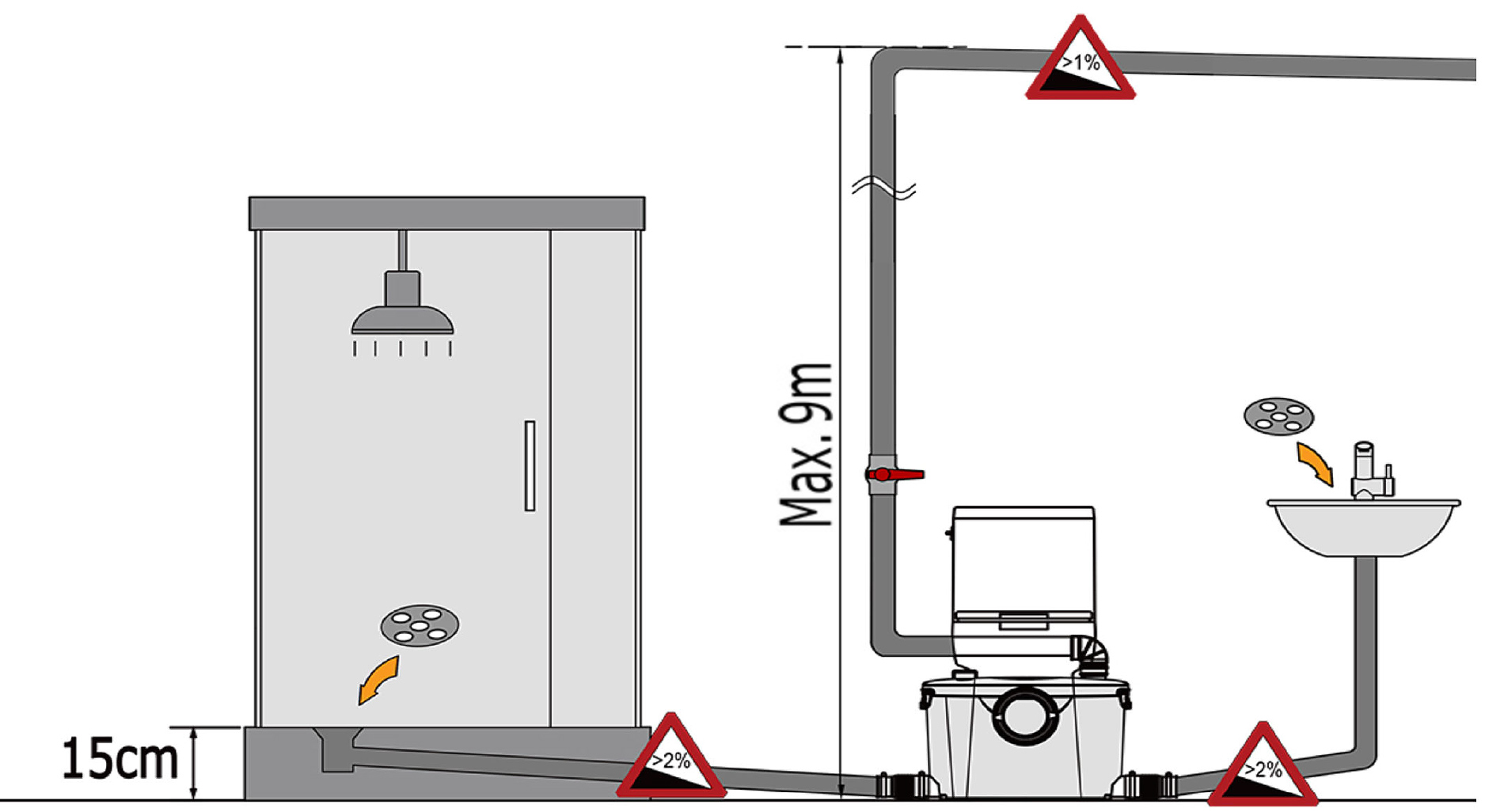

POSSIBLE CONNECTIONS

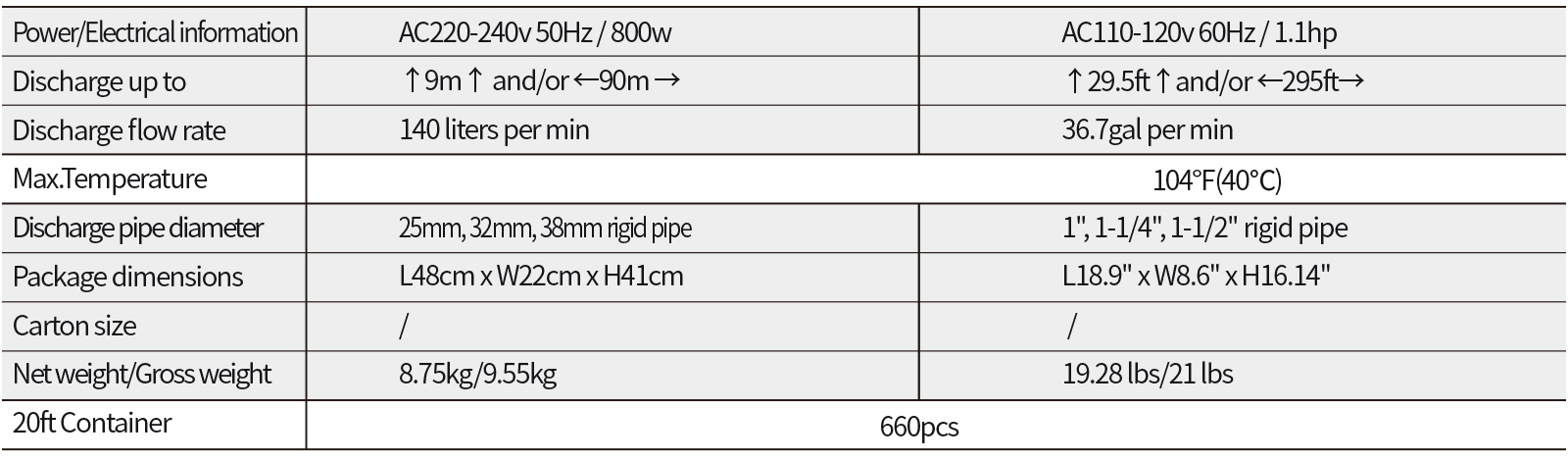

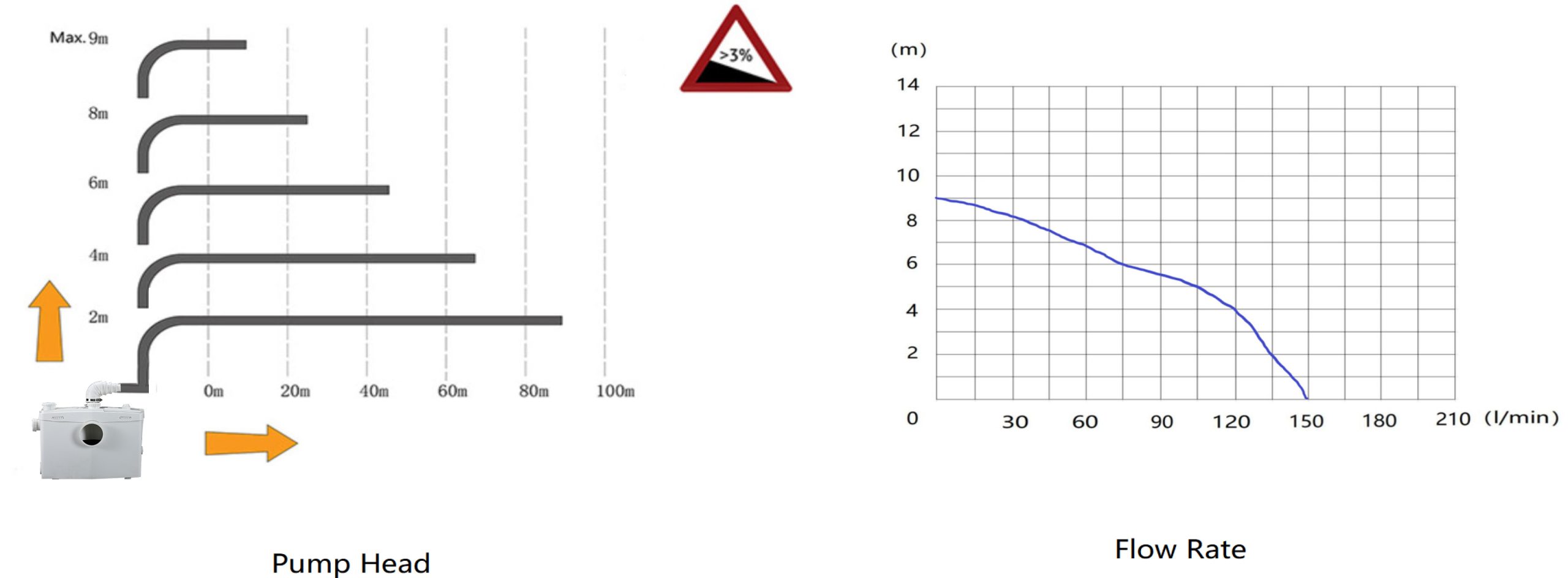

TECHNICAL PARAMETER

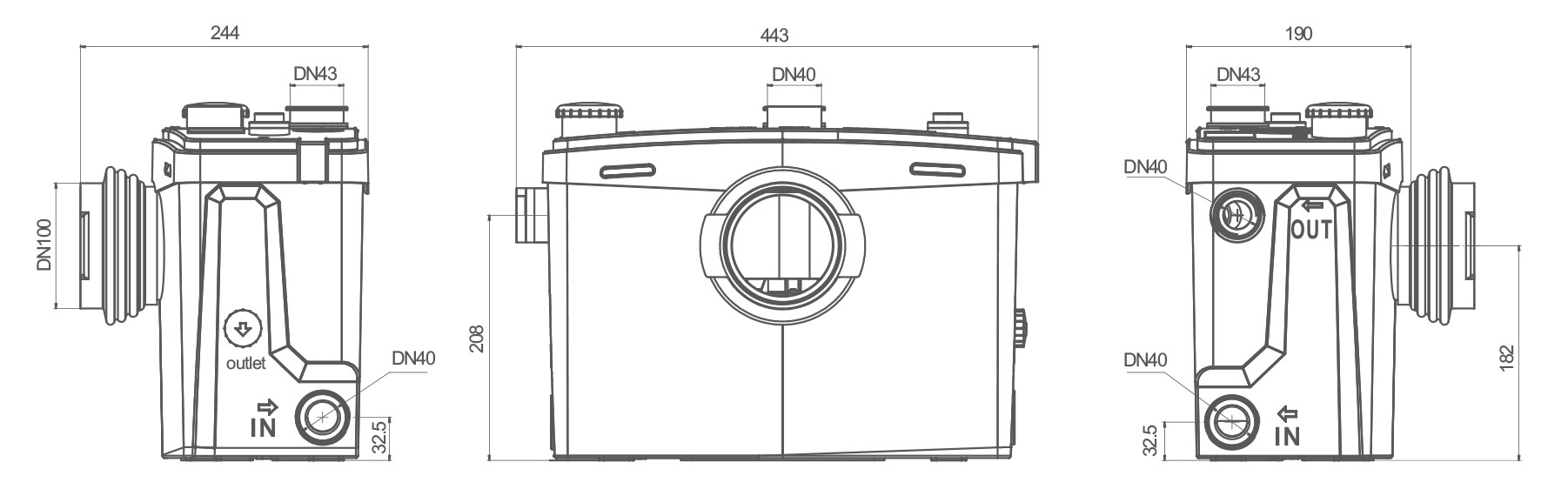

INTERFACE DIAGRAM
